Applications:
● Repeater
● RF Sub-Systems
● Base station
● Converter
● FTTH(G-PON,GE-PON)
● CATV
Product Features
● Higher Linearity
● Low Distortion
● Low Noise Figure:3.0dB
● 15dB Gain
● Single+8V Supply
● Wide Bandwidth:50 MHz to 1 GHz
● SOIC-8 Package Options
● RoHS Compliant Package Options.

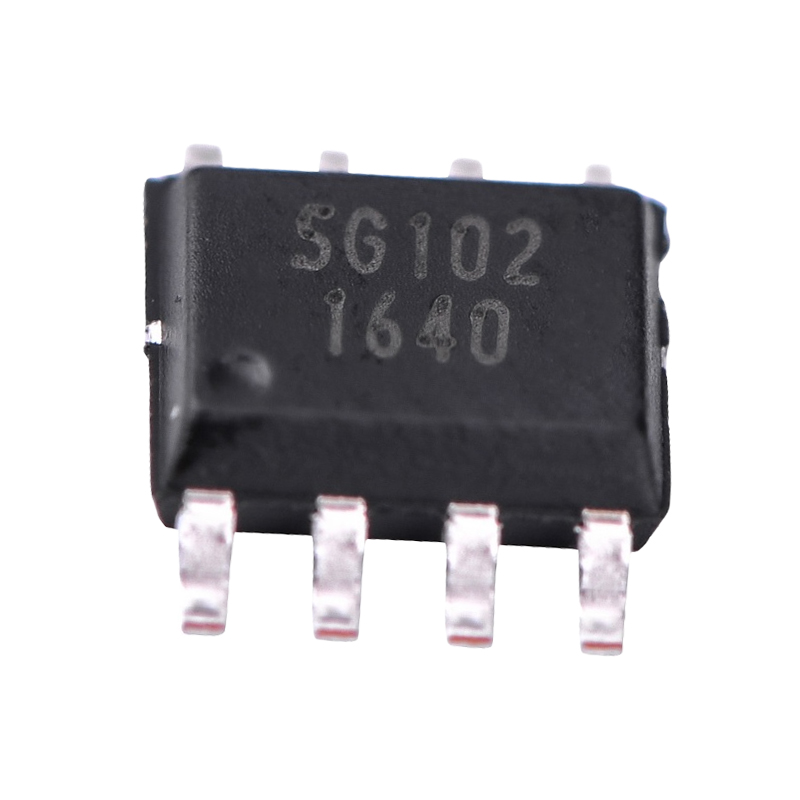

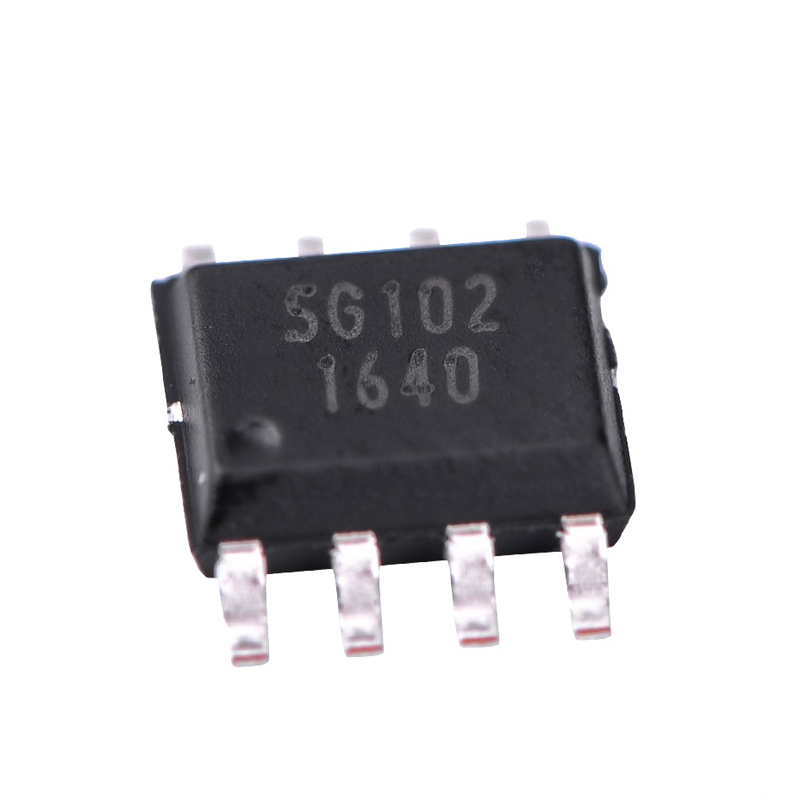

Description:
The power amplifier(SG102)is designed for base stations and repeater systems.GaAs MMIC is used and attached on a copper carrier of 8 pin air cavity package with dual supply voltage SG102 is RoHS compliant and manufactured with green molding compounds that contain no antimony trioxide nor halogenated fire retardants.
| TYPICAL PARAMETERS（TA=+25℃,VDD=+8V/DC,75Ωsystem） | ||||
|
Parameter
|
Units
|
Typical
|
||
|
Frequency
|
MHz
|
40
|
650 |
1000
|
|
Noise Figure
|
dB
|
- |
2.5
|
- |
|
Gain
|
dB |
16.5
|
16
|
15 |
|
S11
|
dB |
-24.8
|
-14.8
|
-17
|
|
S22
|
dB |
-23
|
-21
|
-15.5
|
|
Output P1dB
|
dBm
|
27
|
27 | 27 |
|
Output IP3①
|
dBm
|
44
|
46 | 46 |
|
Output IP2②
|
dBm
|
58 | 62 | 60 |
|
CSO③
|
dBc
|
- | 60 | - |
|
CTB③
|
dBc
|
- | 69 | - |
|
Supply Current
|
mA
|
- | 240 | - |
|
Supply Voltage
|
V
|
- | 8 | - |
|
Frequency
|
MHz
|
40 | 650 | 1000 |
|
Noise Figure
|
dB
|
- | 2.5 | - |
|
Gain
|
dB
|
16.5 | 16 | 15 |
|
S11
|
dB
|
-24.8
|
-14.8 | -17 |
|
S22
|
dB
|
-23
|
-21 | -15.5 |
|
Output P1dB
|
dBm
|
27 | 27 | 27 |
|
Output IP3①
|
dBm
|
44 | 46 | 46 |
|
Output IP2②
|
dBm
|
58 | 62 | 60 |
|
CSO③
|
dBc
|
- | 64 | - |
|
CTB③
|
dBc
|
- | 71 | - |
| Supply Current |
mA
|
- | 240 | - |
|
Supply Voltage
|
V | - | 10 | - |
