Key Features
| ● Si active devices |
| ● Power gain @30dB |
| ● Low distortion |
| ● Excellent linear gain |
| ● Low noise figure |
| ● High reliability |
| ● Low cost |

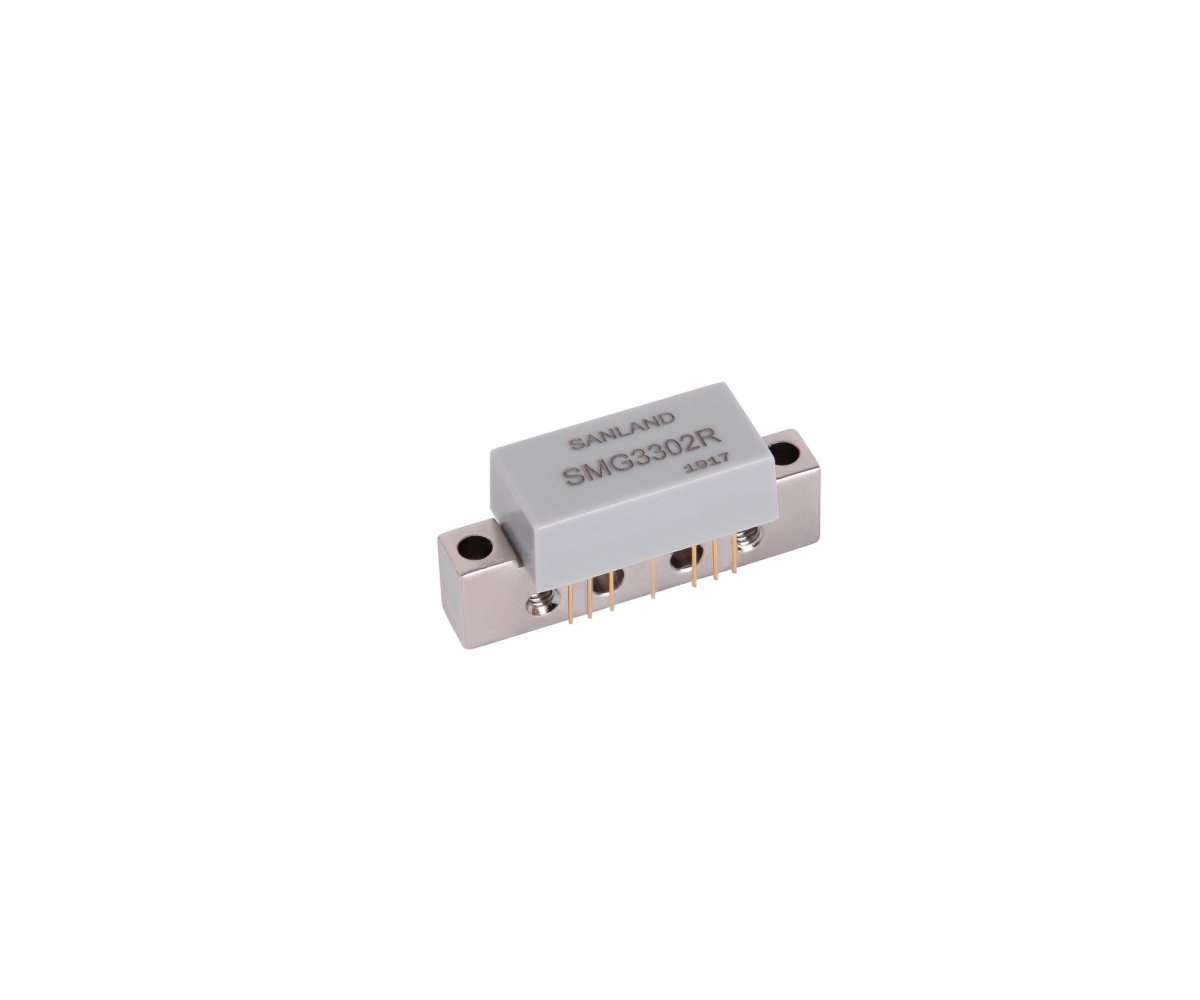

SMG3302R/CATV 30dB Hybrid Reverse Amplifier Module
The SMG3302R is a hybrid reverse amplifier module.The part employs Si dies and is operated from 10MHz to 300MHz with supply voltage +24V( DC).
| Type | Downstream |
| Frequency Min(MHz) | 10 |
| Frequency Max(MHz) | 300 |
| Input return loss(dB)S11 |
-18
|
| Output return loss(dB)S22 |
-18 |
| Slope(dB) | ±0.5 |
| Gain (dB) | 30 |
| CTB (dBc) | -66 |
| Xmod(dBc) | -60 |
| CSO (dBc) | -65 |
| NF(dB) | 4.3 |
| Flatness(dB) | ±0.5 |
| Voltage(V) | 24 |
| Current(mA) | 130-160 |
| Rohs | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
