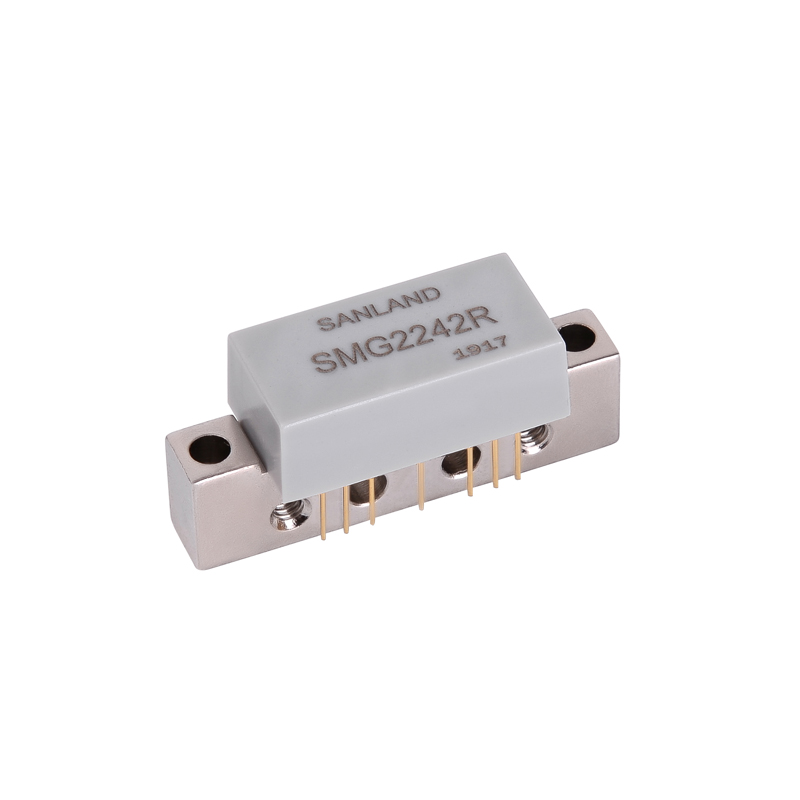

SMG2242R/CATV Reverse Amplifier Module China Supplier

Product categories

FEATURES

● GaAs active devices

● Power gain @24.5dB

● Low distortion

● Excellent linear gain

● Low noise figure

● High reliability

● Low cost

DESCRIPTION

The part employs GaAs dies and is operated from 5 MHz to 200MHz with supply voltage +24V(DC).

CHARACTERISTICS
(Bandwidth 5 to 200MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω)
SYMBOL	PARAMETER	UNIT	MIN.	TYP.	MAX.	CONDITIONS
Gp	Power Gain	dB	24	-	25	f=10MHZ
Gp	Power Gain	dB	-	24.5	-	f=200MHZ
SL	Slope cable equivalent	dB	-	-	+0.5	f=5 to 200MHZ
FL	Flatness of frequency response	dB	-	-	+0.5	f=5 to 200MHZ
S11	Input Return Loss	dB	-	-	-20	f=5 to 200MHZ
S22	Output Return Loss	dB	-	-	-20	f=5 to 200MHZ
CTB	Composite Triple Beat	dB	-	-	-66	17channels flat; Vo=50dBmV;
CSO	Composite Second Order distortion	dB	-	-	-65
Xmod	Cross Modulation	dB	-	-	-60
F	Noise Figure	dB	-	4.3	-	f=200 MHZ
Itot	Total Current Consumption	mA	130	160	-	VB=+24V
The module normally operates at VB=24 V(±0.5)

If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.
