SMG1820DG CATV GaAs Power Double Module China Supplier

Product categories

FEATURES

●GaAs active devices

● Power gain @34dB

● Low distortion

● Excellent linear gain

● Low noise figure

● High reliability side view

● Low cost

DESCRIPTION

The part employs GaAs dies and is operated from 50MHz to 550MHz with supply.

CHARACTERISTICS
(Bandwidth 50 to 550MHZ; Tmb＝25℃, VB＝24V, ZS＝ZL＝75Ω)
SYMBOL	PARAMETER	UNIT	MIN.	TYP.	MAX.	CONDITIONS
Gp	Power Gain	dB	33.5	-	34.5	f=50MHZ
Gp	Power Gain	dB	-	35	-	f=550MHZ
SL	Slope cable equivalent	dB	-	-	2.0	f=50 to 550 MHZ
FL	Flatness of frequency response	dB	-	-	±0.5	f=50 to 550 MHZ
S11	Input Return Loss	dB	-	-	-16	f=50 to 550 MHZ
S22	Output Return Loss	dB	-	-	-16	f=50 to 550 MHZ
CTB	Composite Triple Beat	dB	-	-	-62	PAL60channelsflat; Vo=44dBmV; CTB measured at 543.25 MHz; CSO measured at 544.5 MHz;
CSO	Composite Second Order distortion	dB	-	-	-63
Xmod	Cross Modulation	dB	-	-	-55
Vo	Output Voltage	dBmV	60	-	-	dim=-60dB
F	Noise Figure	dB	-	-4.0	-	f=860 MHZ
Itot	Total Current Consumption	mA	260	310	-	VB=+24V

If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.

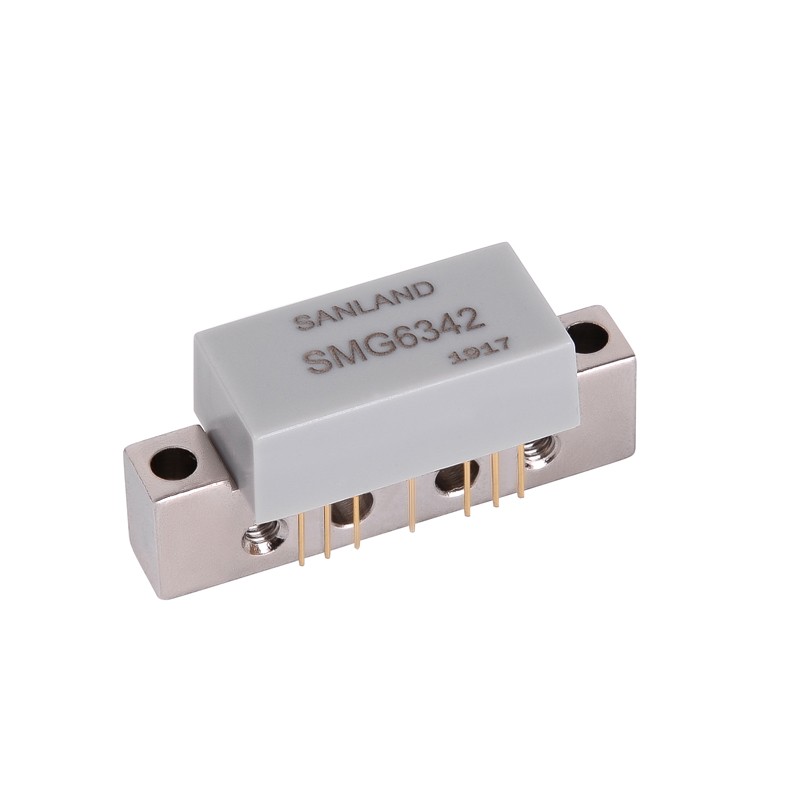

GaAs hybrid push-pull amplifier module
