Key Features
| ● AGC controlled receiver with -6 to +2dBm optical input range |
| ● 18 dBmV RF output level for single subscriber (SDU) applications |
| ● Burst mode is supported |
| ● Input optical level test points (1V/mW) |
| ● 54/87/105/258–1218MHz forward on 1550 nm and 5–42/65/85/204MHz return on 1610 nm wavelengths |
| ● 1610nm DFB laser transmitter supports full DOCSIS® 3.0 operation |
|
● DC power supported via RF port or dedicated power port |
|
● 10/10, 10/1, 2/1, 1/1Gbps PON pass-through and no PON pass-through options |

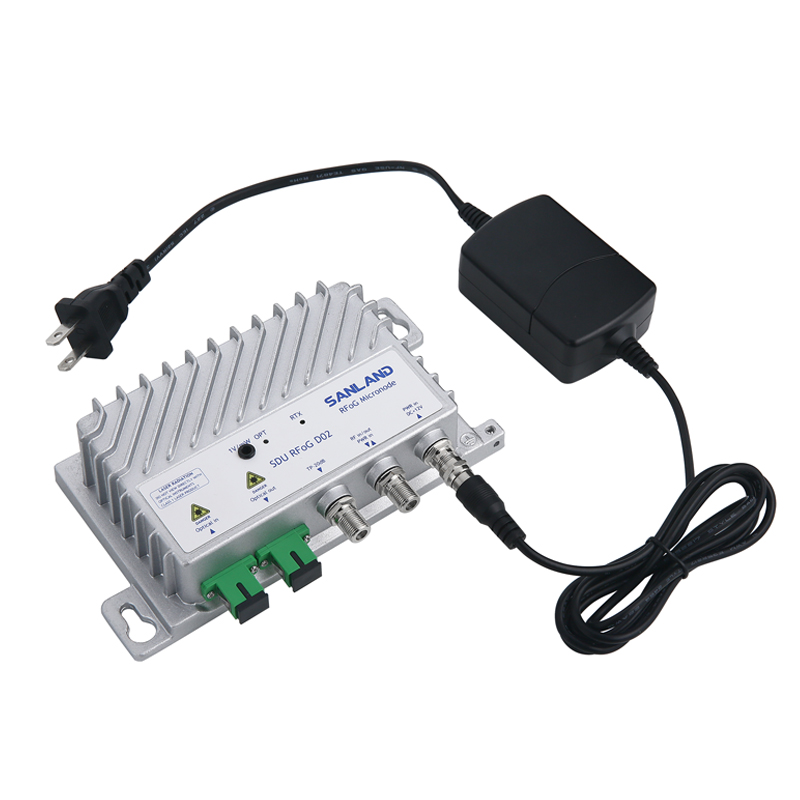

SDU-RFoG-D02
The SANLAND SDU RFoG D02 Optical Network Unit (R-ONU) for Single Dwelling Unit (SDU)applications support cost-effective deployment of full interactive video, voice, and data services over an RFoGnetwork. SDU RFoG D02 enables multiple simultaneous upstream RF channel transmissions, enabling multipleMACdomains and full DOCSIS 3.0 channel usage to efficiently coexist. The 18 dBmV RF output with AGC (Automatic Gain Control) supports a wide array of SDUdesigns, witha5–42/65/85/204MHz return path using 1610 nm wavelength optics and a 54/87/105/258–1218MHzforwardpath on 1550 nm wavelength optics.
| Type | Downstream |
| RF bandwidth cover range (MHz) | Forward: 54-1200, Reverse: 5-42 |
| RF Return Loss (dB) | ≤ -14 |
| Receiving Wavelength (nm) | 1550±10 |
| Transmitting Wavelength (nm) | 1610±10 |
| AGC (dBm) | -6 ~ +2 |
| CSO (dBc) | ≥ -62 |
| CTB (dBc) | ≥ -65 |
| CNR (dB) | ≥ 48 |
| Voltage (VDC) |
12 |
| Flatness (dB) | ≤ ±1.0 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
