Key Features
| ● Excellent Linearity |
| ● Excellent Low Noise |
| ● Excellent Flatness |
| ● Rugged construction |
| ● FC / APC |
| ● AGC |

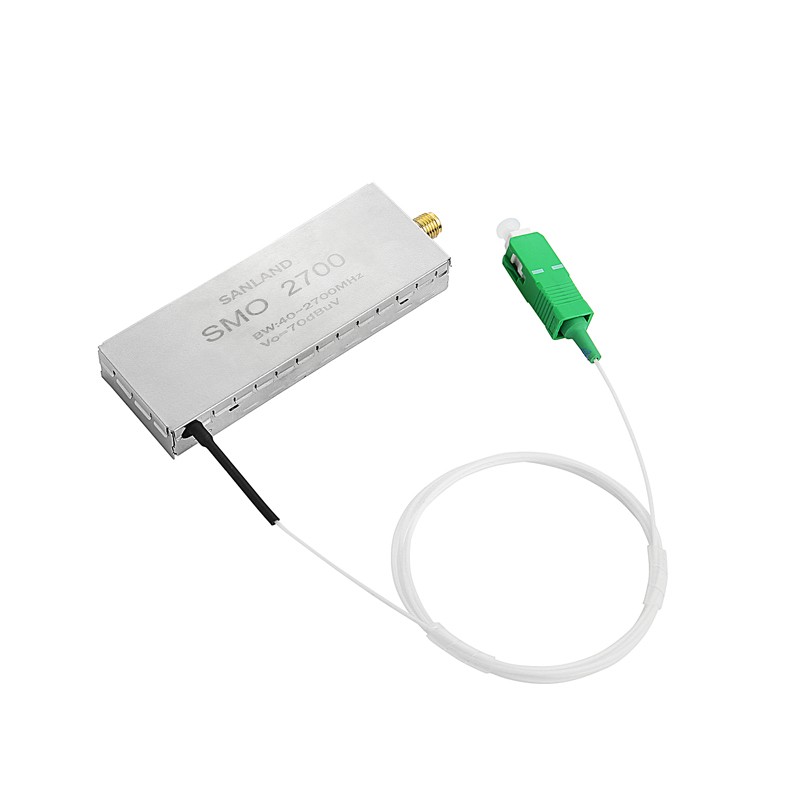

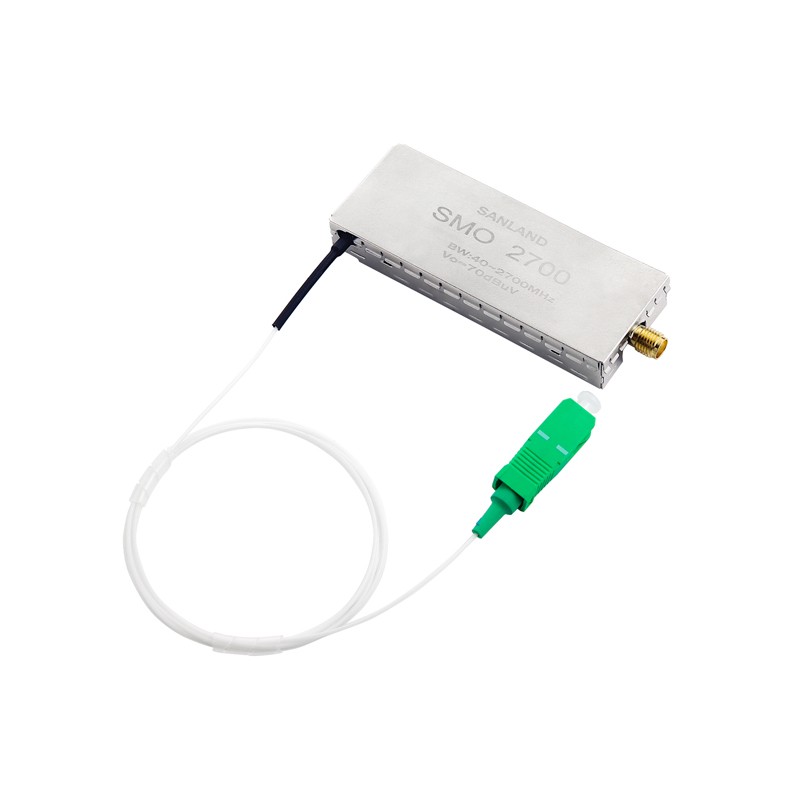

SMO2700 is a low power, but good performance optical receiver. The output level is 70dBuV @ -5dBm. Small size with FC/APC connector which can be assembled in a small case.
| Type | Downstream |
| Bandwidth (MHz) | 45-2700 |
| Output Return Loss (S22) | -12dB |
| Output Voltage (dBuV) | 70 |
| AGC (dBm) | -10 ~ 0 |
| CSO (dBc) | -60 |
| CTB (dBc) | -60 |
| CNR (dB) | 45 |
| Voltage (V) | 5 |
| Current (mA) | 200-220 |
| Flatness (dB) | ±1.0 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
Major Applications
