Download product specification：HP80A-8.PDF
FEATURES
● Excellent linearity
● Extremely low noise
● Excellent flatness
● Standard CATV outline
● Rugged construction
● FC/APC SC/APC
● AGC
DESCRIPTION

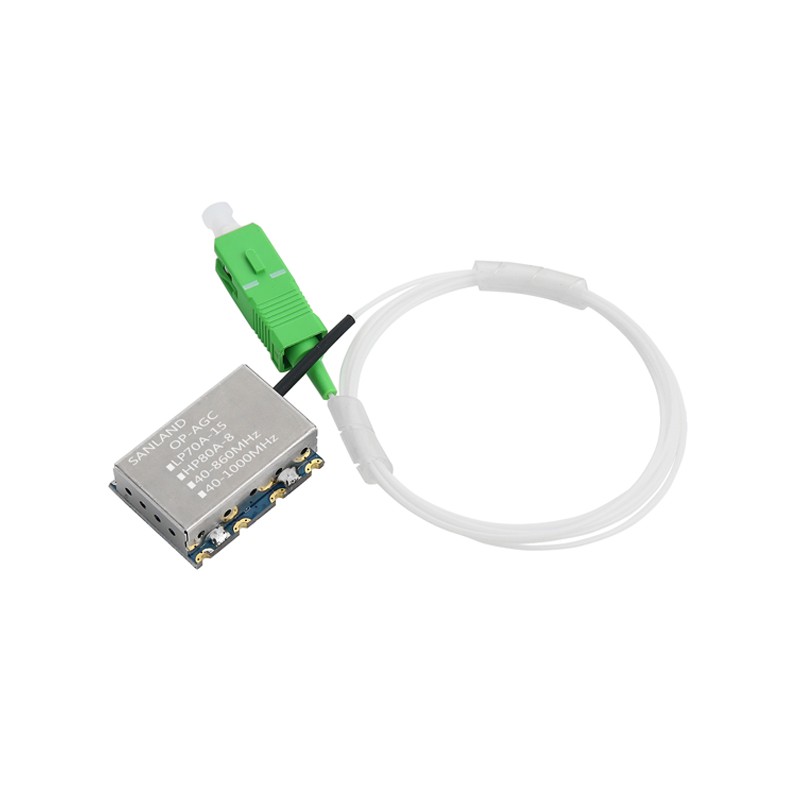

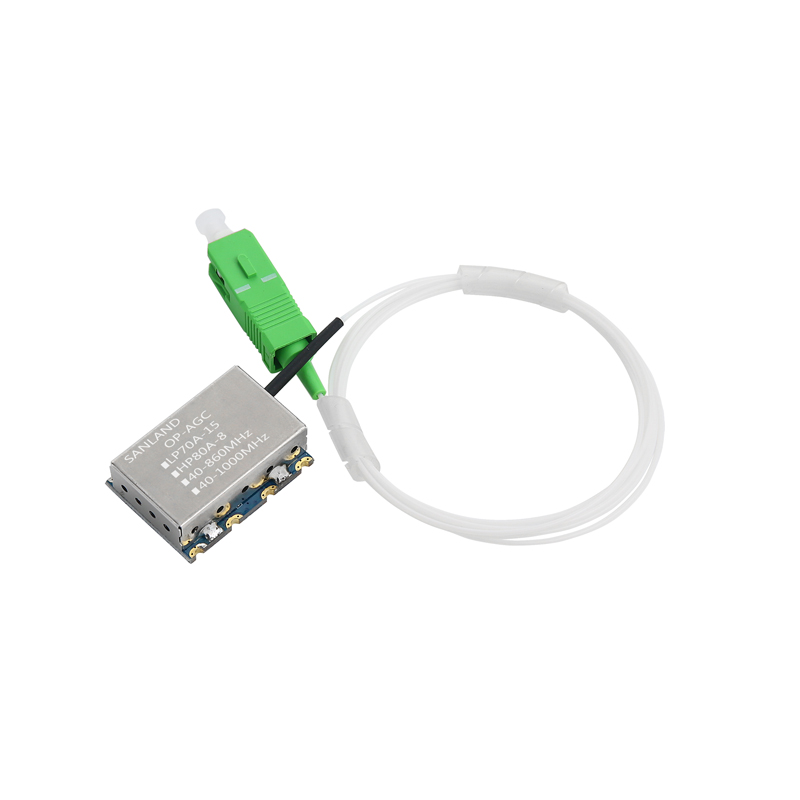

The HP80A-8AGC CATV Optical Receiver Module has an FC/APC or SC/APC Connector. The amplifier supply voltage pin Connect to 5V(DC) . The modules have a monomode optical input Suitable for 1300 to 1600nm wavelengths a terminal to monitor the photo diode current and an electrical Output having a characteristic.
| CHARACTERISTICS | ||||||
| (Bandwidth 40 to 1000MHZ; Tmb＝25℃, VB＝5V, ZS＝ZL＝75Ω) | ||||||
| SYMBOL | PARAMETER |
UNIT
|
MIN.
|
TYP. | MAX. | CONDITIONS |
|
s
|
responsively | V/W | 850 | - | ±0.75 |
λ=1300nm-1600nm
|
|
FL
|
Flatness of frequency response | dB | - | - | 81 |
f=40 to 1000 MHZ
|
|
Vo
|
Output Voltage | dBuV | 79 | 80 | -63 |
Popt= -8 ~ +2dBm
|
|
CTB
|
Composite Triple Beat | dB | - | - | - |
60 channels flat;
measured at 543.25 MHz;
Optical power receiving at–1dBm
|
|
CSO
|
Composite Second Order distortion | dB | - | 50 | - | |
|
CNR
|
Noise carraier rating | dB | - | - | - | |
|
S22
|
Output Return Loss | dB | -12 | - | - |
f=40 to 1000 MHZ
|
|
Itot
|
Total Current Consumption | dB | 230 | 250 | 280 |
VB=5V
|
| The module normally operates at VB=5 V | ||||||
