Key Features
| ● Excellent linearity |
| ● Extremely low noise |
| ● Excellent return loss properties |
| ● High reliability |

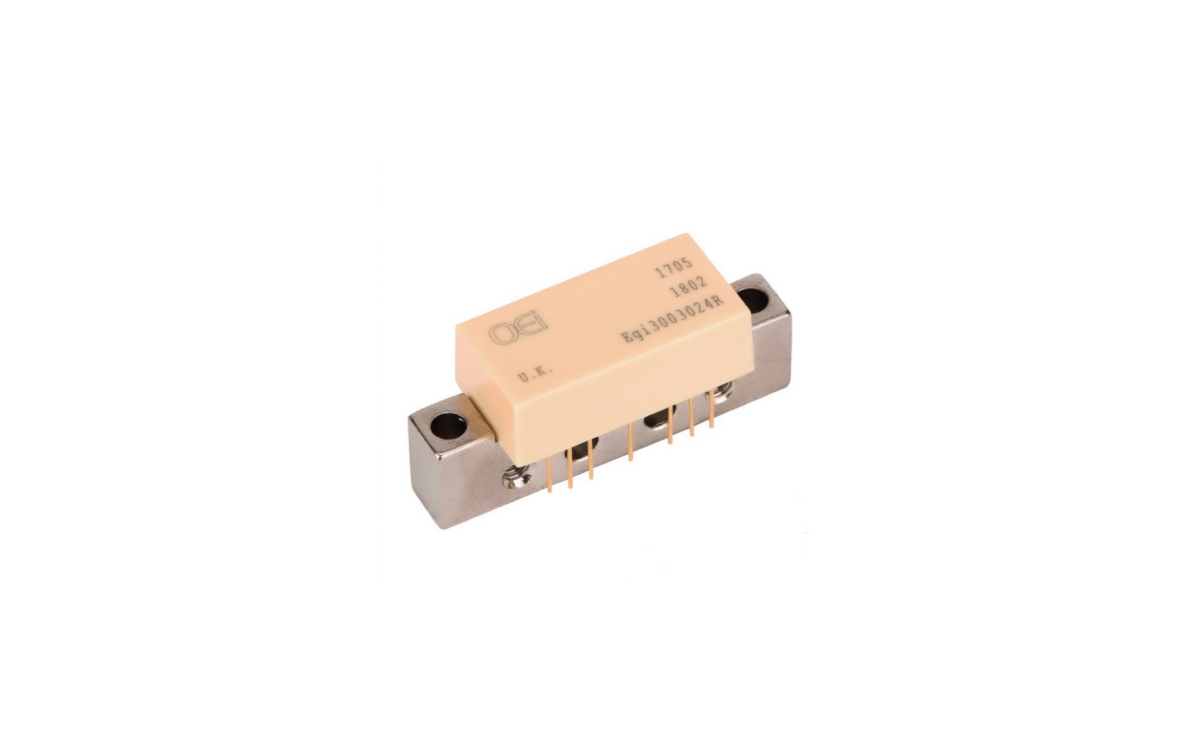

Egi3003024R GaAs Reverse Amplifier Module
Hybrid amplifier module operating over a frequency range of 5 to 300 MHz at a voltage supply of +24V(DC)
| Type | Downstream |
| Frequency Min(MHz) | 5 |
| Frequency Max(MHz) | 300 |
| Input return loss(dB)S11 | -18 |
| Output return loss(dB)S22 |
-18 |
| Slope(dB) | -0.2~0.5 |
| Gain (dB) | 30-31 |
| CTB (dBc) | -65 |
| Xmod(dBc) | -62 |
| CSO (dBc) | -63 |
| NF(dB) | 3.0 |
| Flatness(dB) | ±0.2 |
| Voltage(V) | 24 |
| Current(mA) | 220-270 |
| Rohs | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
