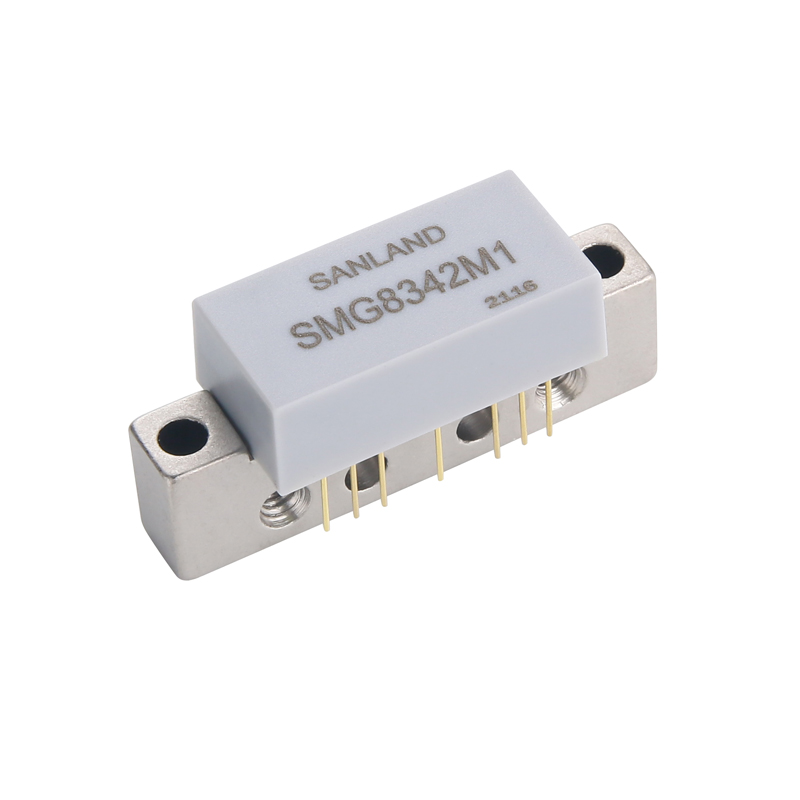

Egi12002724PG/CATV GaAs Module

Egi12002724PG/CATV GaAs Module

Egi12002724PG/CATV GaAs Module

  • Item NO:
    SMG8342M1
  • Goods stock:
    10000
  • Min order:
    =500
  • Product weight:
    10g
  • Payment:
    TT/LC
  • ShippingPort:
    Shenzhen
  • Original Region:
    China

SMG8342M1.PDF



FEATURES

GaAs active devices

Power gain @34dB

Low distortion

Excellent linear gain

Low noise figure

High reliability

Low cost



DESCRIPTION

The SMG8342M1 is a GaAs module.

The part employs GaAS dies and is operated from 50MHz to 870MHz with supply +24V( DC).

CHARACTERISTICS
(Bandwidth 50 to 870MHZ; Tmb=25℃, VB=24V, ZS=ZL=75Ω)
SYMBOL
PARAMETER
UNIT
MIN.
TYP.
MAX.
CONDITIONS
Gp
Power Gain
dB
34 - 35.5
f=50MHZ
Gp
Power Gain
dB
37 - -
f=860MHZ
SL
Slope cable equivalent
dB
2.0 - 3.5
f=50 to 870 MHZ
FL
Flatness of frequency response
dB
- -
±0.5
f=50 to 870 MHZ
S11
Input Return Loss
dB
- - -16
f=50 to 870 MHZ
S22
Output Return Loss
dB
- - -16
f=50 to 870 MHZ
CTB
Composite Triple Beat
dB
- - -60
PAL60 channelsflat; Vo=44dBmV;
CTB measured at 543.25 MHz;
CSO measured at 544.5 MHz;


CSO
Composite Second Order distortion
dB
- - -60
Xmod
Cross Modulation
dB
- - -55
Vo
Output Voltage
dBmV
58 - - dim=-60dB
F
Noise Figure
dB
- -
7.5
f=860 MHZ
Itot
Total Current Consumption
mA
100 130 -
VB=+24V
The module normally operates at VB=24 V(±0.5),
If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.
