Egi12002724PG Push-pull Module

CATV Hybrid Amplifier Push-pull Module

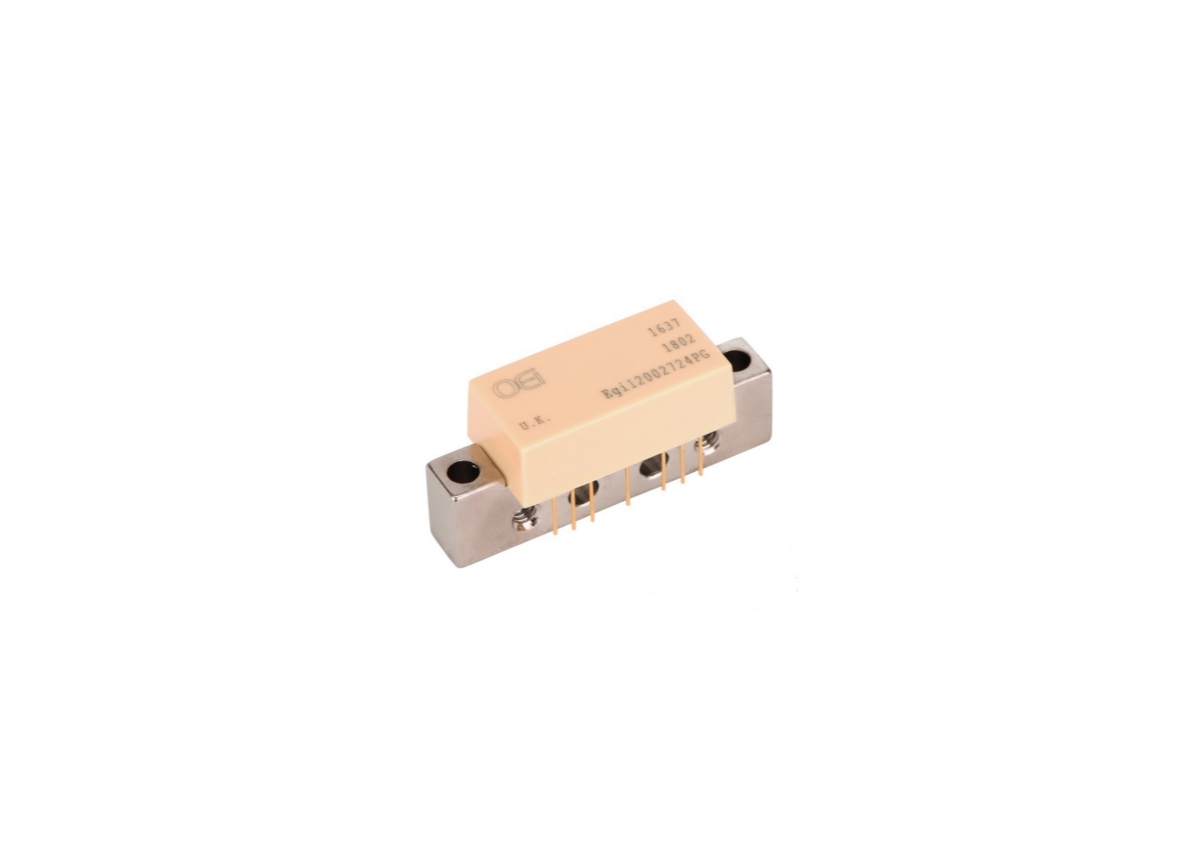

Egi12002724PG Push-pull Module

Key Features

●  Excellent linearity
●  Extremely low noise
●  Excellent return loss properties
●  High gain
●  High reliability

Egi12002724PG Push-pull Module

Hybrid amplifier module operating over a frequency range of 47 to 1218 MHz at a voltage supply of +24V(DC) ,employing GaAs MMIC.

Type Downstream
Frequency Min(MHz) 47
Frequency Max(MHz) 1218
Input return loss(dB)  -18
Output return loss(dB)
 -18
Slope(dB) 0.5-2.0
Gain (dB)  27
CTB (dBc)  -68
Xmod (dBc)  -64
 CSO (dBc)  -75
NF(dB)  4.5
Flatness(dB)  ±0.8
 Voltage(V)  24
 Current(mA) 260-290
Rohs Yes
Lead Free Yes
Halogen Free Yes or No
