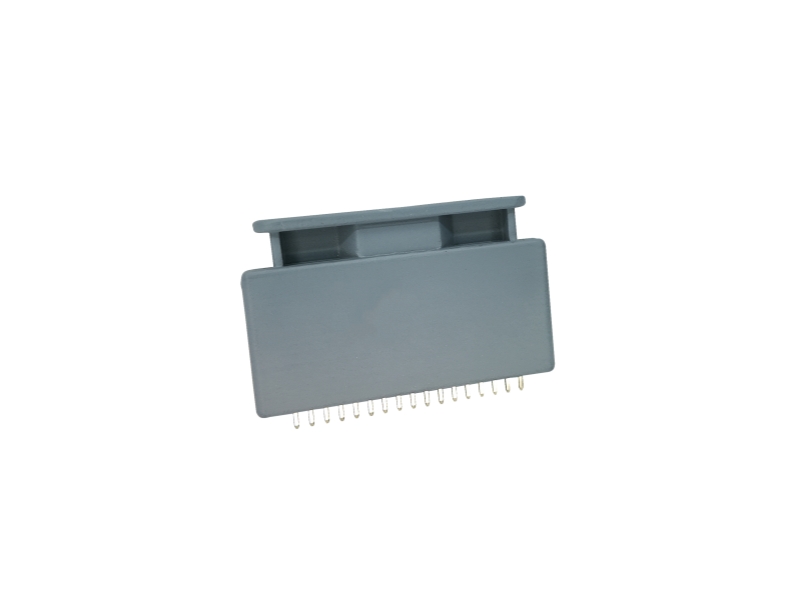

1.8G CATV Diplex Filter 5-684 / 834-1794 MHz

CATV Diplex Filter

1.8G CATV Diplex Filter 5-684 / 834-1794 MHz

Key Features

●  75 Ohm
●  Plug in Design
●  RoHS compliant
●  Low Insertion Loss
●  Excellent Cross over Isolation
●  Small thickness

1.8G CATV Diplex Filter 5-684 / 834-1794 MHz

"Sanland" Diplex Filter Unit features exceptional low insertion loss and minimal reflection, ensuring superior signal integrity. Designed to streamline calibration processes, it optimizes circuit design for enhanced efficiency and reliability.



Functional Schematic



Dimension(Unit: mm, Tolerance: ±0.2mm)

Parameter

Test conditions

Min.

Max.

Units

Frequency range

5 ~ 684MHz







834 ~ 1794MHz









Insertion loss

5 ~ 684 MHz @684MHz

-

1.5

dB

834 ~ 1794MHz @834MHz

-

1.5

dB

834~ 1794MHz @1794MHz

-

1.5

dB

Crossover Isolation

HP-LP

685 ~ 833MHz

45

-

dB

Outof Band Rejection

High Pass

5-684MHz

45

-

dB



Outof Band Rejection



LowPass

834-1000MHz

50

-

dB

1001-1220MHz

45

-

dB

1221-1794MHz

40

-

dB



Return loss

5 ~ 684MHz

-

-20

dB

834 ~1000MHz

-

-20

dB

1001 ~ 1794MHz

-

-19

dB
