专利1 SMOP23/CATV

专利1  SMOP23/CATV
专利1  SMOP23/CATV

专利1 SMOP23/CATV

  • Item NO:
    SMOP23
  • Min order:
    =100
  • Product weight:
    50g
  • Payment:
    TT/LC
  • ShippingPort:
    Shenzhen
  • Original Region:
    China
  • Lead Time:
    According to Order Quanlity

Download product specification:SMOP23.PDF

FEATURES
● Excellent linearity
● Extremely low noise
● Excellent flatness
● Rugged construction
● PWDM
● AGC

DESCRIPTION

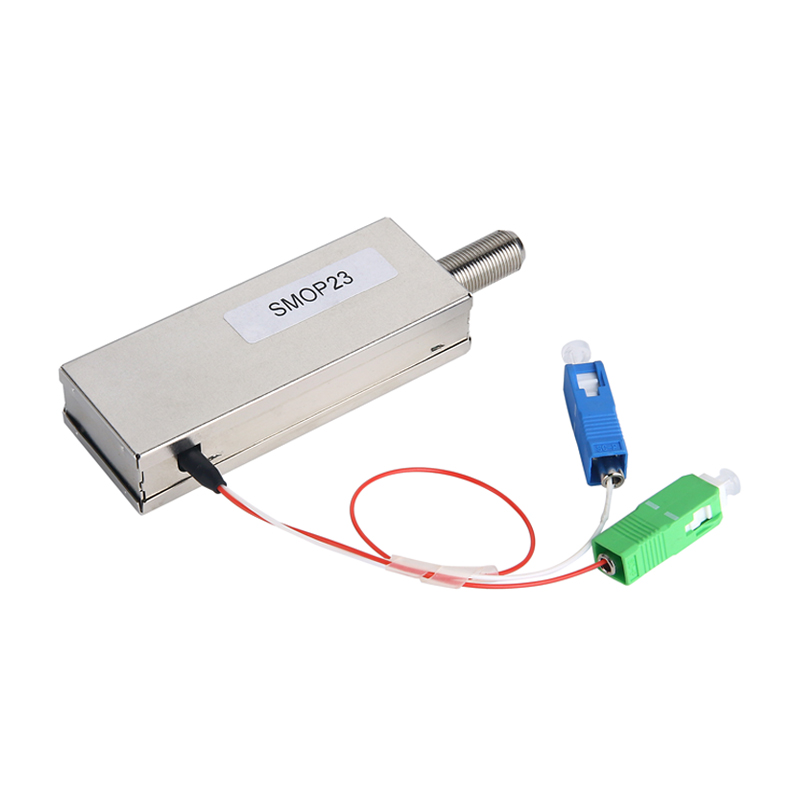

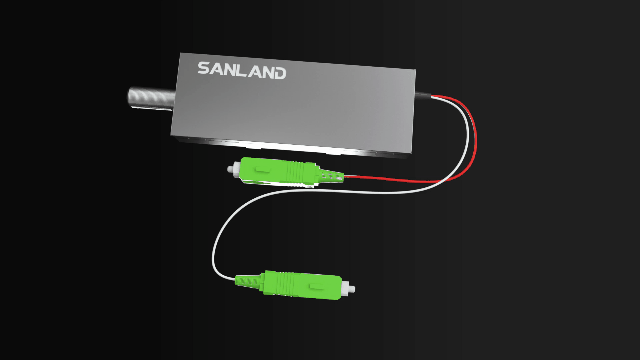

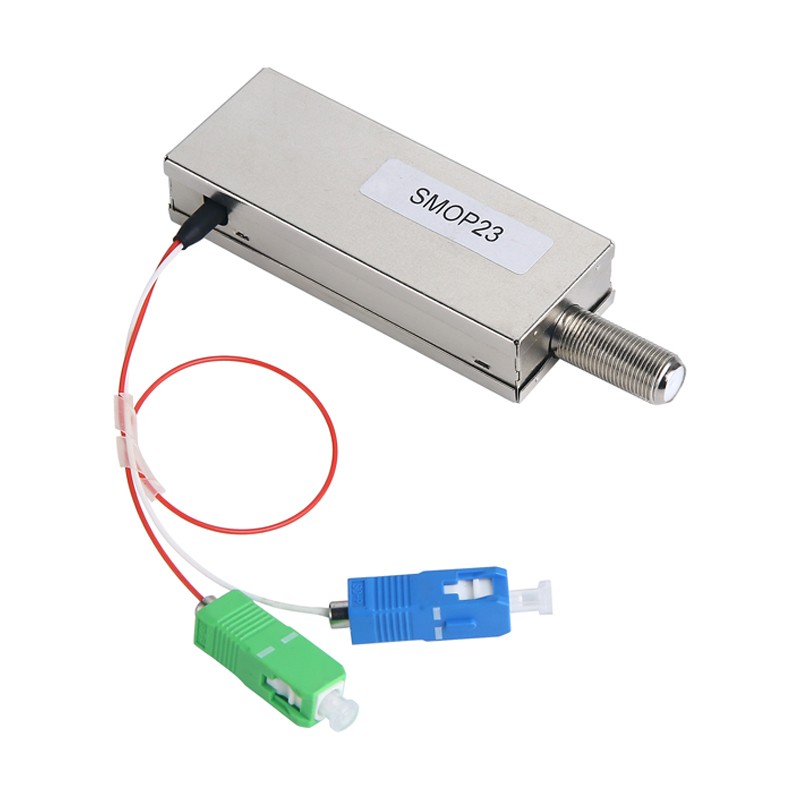

SMOP23 CATV AGC Optical Receiver Module is a low power, but good performance optical receiver. AGC circuitry make output level stably when in the range of -10~0dBm. Small size which can be assembled in a small case.

CHARACTERISTICS
(Bandwidth 45 to 1000MHZ; Tmb=25℃, VB=5V,ZS=ZL=75Ω)
SYMBOL
PARAMETER
UNIT
MIN.
TYP.
MAX.
CONDITIONS

responsively
V/W
0.9
-
-
λ=1550nm

Flatness of frequency
response
dB
-
±1.0
±0.5
f=45 to 1000 MHZ, wide band
flatness

Flatness of frequency
dB
- -
±0.4
Narrow bandwidth per 7MHz
  Slope
dB
0 2.0
4.0
From 45~1000MHz

Output Return Loss
dB
-14
- -

f=45 to 1000 MHZ

Total Current Consumption
mA
310
-
350
VB=5V
Automatic Gain Control Receiving Power: -10~0dBm (According to customer requirements)
Vo1
Output Voltage
dBuV
78 81 83
Popt= -10~0dBm @176.25MHz
42 channels T=25℃
OMI=4% per channel
Vo1
Output Voltage
dBuV
77 80 82
Popt= -10~0dBm @176.25MHz
42 channels T=-20℃
OMI=4% per channel
CTB
Composite Triple Beat
dB
-
-
-60
Optical
power/
0dBm
42chanels
PAL-D.175.25MHz
OMI=4% per channel
CSO
Composite Second Order
distortion
dB
-
-
-60
C-spurious
Carrier to spurious
dB
-
-
-60
CTB
Composite Triple Beat
dB - -
-62
Optical
power-
1dBm
42channels
PAL-D.175.25MHz
OMI=4% per channel
CSO
Composite Second Order
distortion
dB - -
-60
C-spurious
Carrier to spurious
dB - -
-60
CNR
Noise carrier rating
dB
46 - -
Optical
power/-
8dBm
42channels
PAL-D.176.25MHz
OMI=4% per channel

If you want to know more about our product details,Please reply to get E-Catelog and FOC samples,Thank you.

SMOP23 CATV AGC Optical Receiver Module
